TC-70 optical Multi Meter integrates both an optical power meter module and an optical light source module. It can perform closed-loop tests by using both modules and can also work individually. It is specifically designed for technical support personnel to test a variety of instruments with a single meter and thus satisfy the user by providing a choice with greater convenience and more advantages.
FEATURES
• Includes all the outstanding functions of the handheld power meter
• Includes all the outstanding functions of the handheld stable light source
• Perfect combination to make your fiber measurements more convenient
• Low battery consumption, more than 240 hours continual operation time with three 1.5V alkaline batteries
• 10 minutes Auto-off function can be activated or deactivated

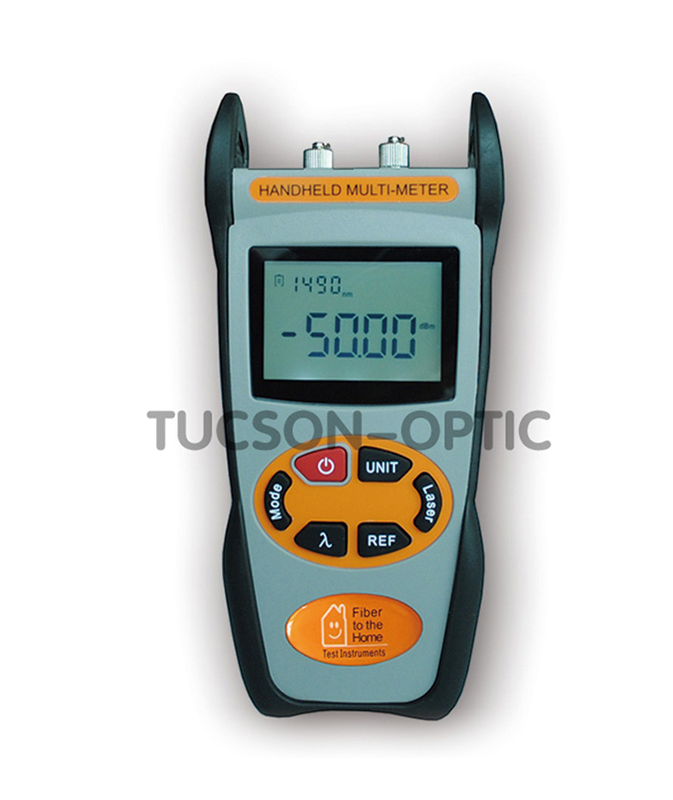

PICTURES
SPECIFICATIONS
Sub Model | TC-70A | TC-70B |
Optical Power Meter Module | ||
Measurement Range(dBm) | -70 ~ +3 | -50 ~ +26 |
Detector Type | InGaAs | |
Uncertainty | 5% | |
Operating wavelength | 850, 1300, 1310, 1490, 1550, 1625 | |
Resolution(dB) | 0.01 | |
Optical Connector | FC/SC/ST(FC-LC converter is optional) | |
Optical Light Source Module | ||
Emitter Type | FP-LD | |
Wavelengths | 1310/1550(other wavelengths can be optional) | |
Output Power(dBm) | -7 | |
Spectral Width | ≤10nm | |
Output Stability | ±0.05dB/15mins; ±0.1dB/ 8hours | |
Optical Connector | FC/SC/ST(FC-LC converter is optional) | |
General Specifications for TC-70 | ||
Power Supply | Alkaline Battery (3 AA 1.5V batteries) | |
Battery Operating Time | ≥60 hours( Power Meter and Light Source are working) ≥240hours(Only Power Meter is working) | |
Operating Temperature(℃) | -10 ~ +60 | |
Storage Temperature(℃) | -25 ~ +70 | |
Dimension(mm) | 200 X90 X50 | |
Weight(g) | 285 | |
