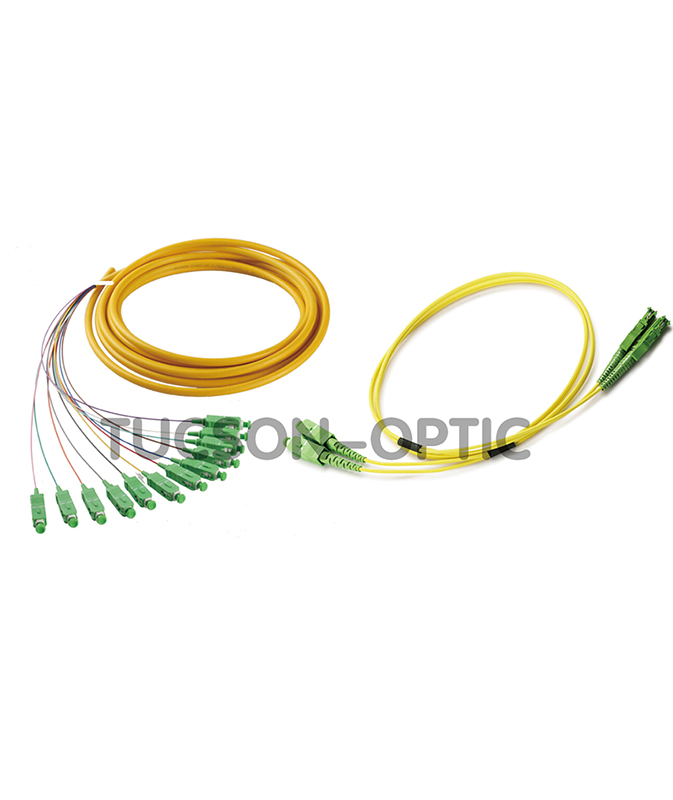

Specification for Pigtail/Patch Cord
Adapter Type | FC, SC, ST, LC, MU, E2000 etc. | ||
Polishing Grade | PC | UPC | APC |
Insertion Loss (dB) | ≤0.20 | ≤0.20 | ≤0.30 |
Return Loss (dB) | ≥45(SM) | ≥50(SM) | ≥60(SM) |
Repeatability (dB) | ≤0.20 | ||
Interchangeability (dB) | ≤0.20 | ||
Fiber Type | Corning SMF-28TM, 9/125um SM 50/125um or 62.5/125um(MM) | ||
Diameter (mm) | 0.9/2.0/3.0 | ||
Working Temperature (℃) | -40 ~ +80 | ||
Storage Temperature (℃) | -40 ~ +85 | ||
Color | Yellow, Red, White, Black, Blue etc | ||
3D Value | 85% | ||
Durability | >1000 times | ||
Industrial Standard | Telcordia GR-326-CORE | ||
