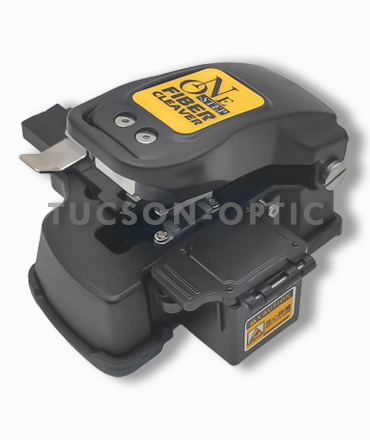

TC-212 One Step Fiber Cleaver
inquiry
details


I. MAIN FEATURES

-- Easy-step operation to complete the cleaving and collection of waste fiber shards.

-- Convenient and quick to operate. Either hand-held or on table/worktop surfaces.

-- Very easy fiber setting and placing and no need for blade height adjustment, therefore improving work efficiency and low maintenance cost.

-- Smart design of pressure pads preventing the fiber from damage by the return of the blade carriage.

-- Small, compact size and light weight.

-- Processed with precision CNC machine, giving precision and stability.



II. SPECIFICATIONS

Product Name

Fiber Cleaver

Applicable Bare Fiber Diameter

125μm

Applicable Fiber Core Count

single-core

Fiber Cutting Length

5–20+ mm

Average Cutting Angle

0.5°

Blade Life

48,000 cuts

Dimensions

76.5W*89D*47H (mm)

Weight

About 180g

Fiber Clamp

5-in-1 Fiber Clamp


III. DETAILED PICTURES
