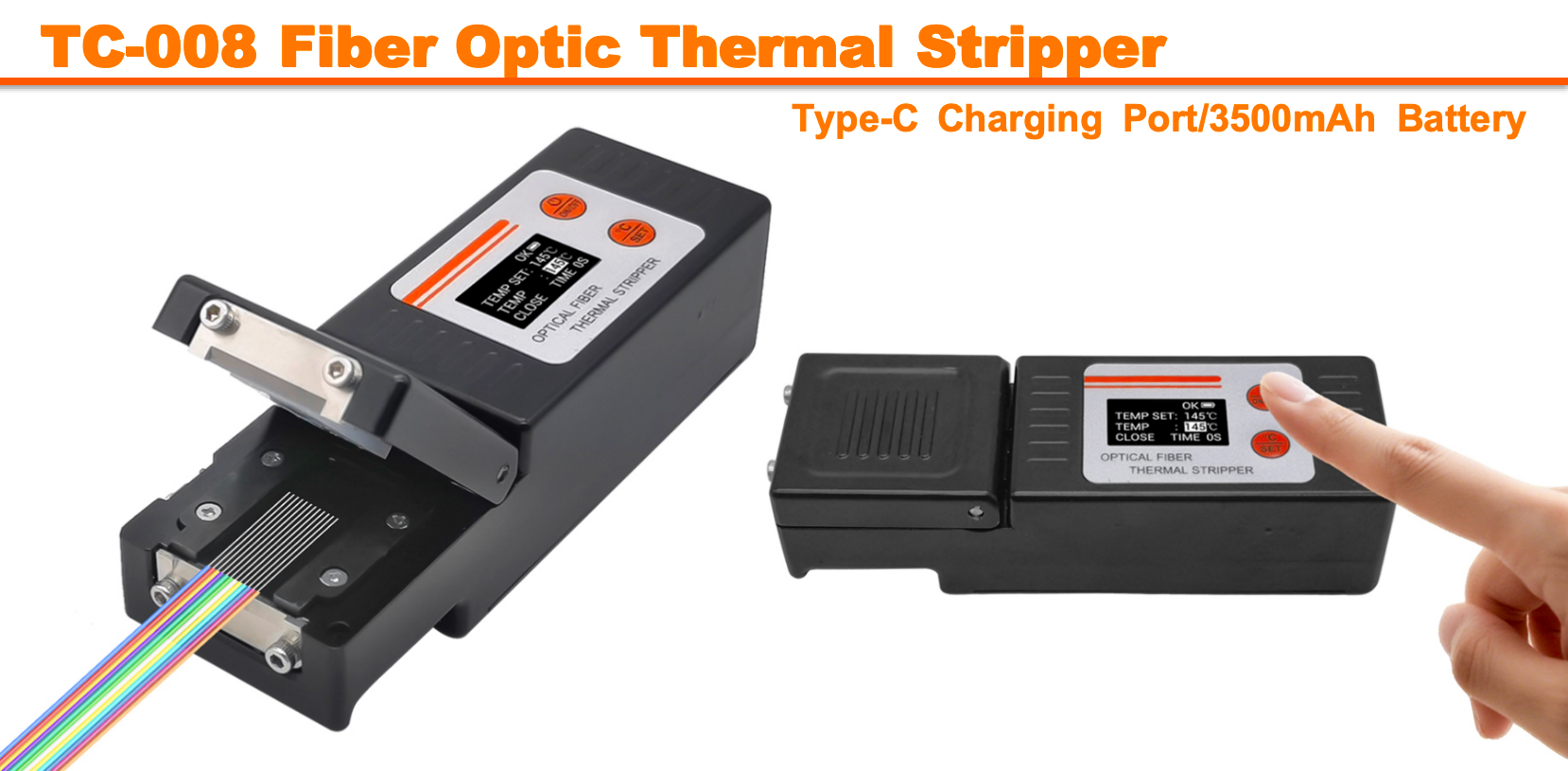

TC-008 Fiber Optic Thermal Stripper
I. MAIN FEATURES
-- All-metal body, non-deformable, fast heat dissipation, durable and stable, and ergonomic jaw opening direction design.

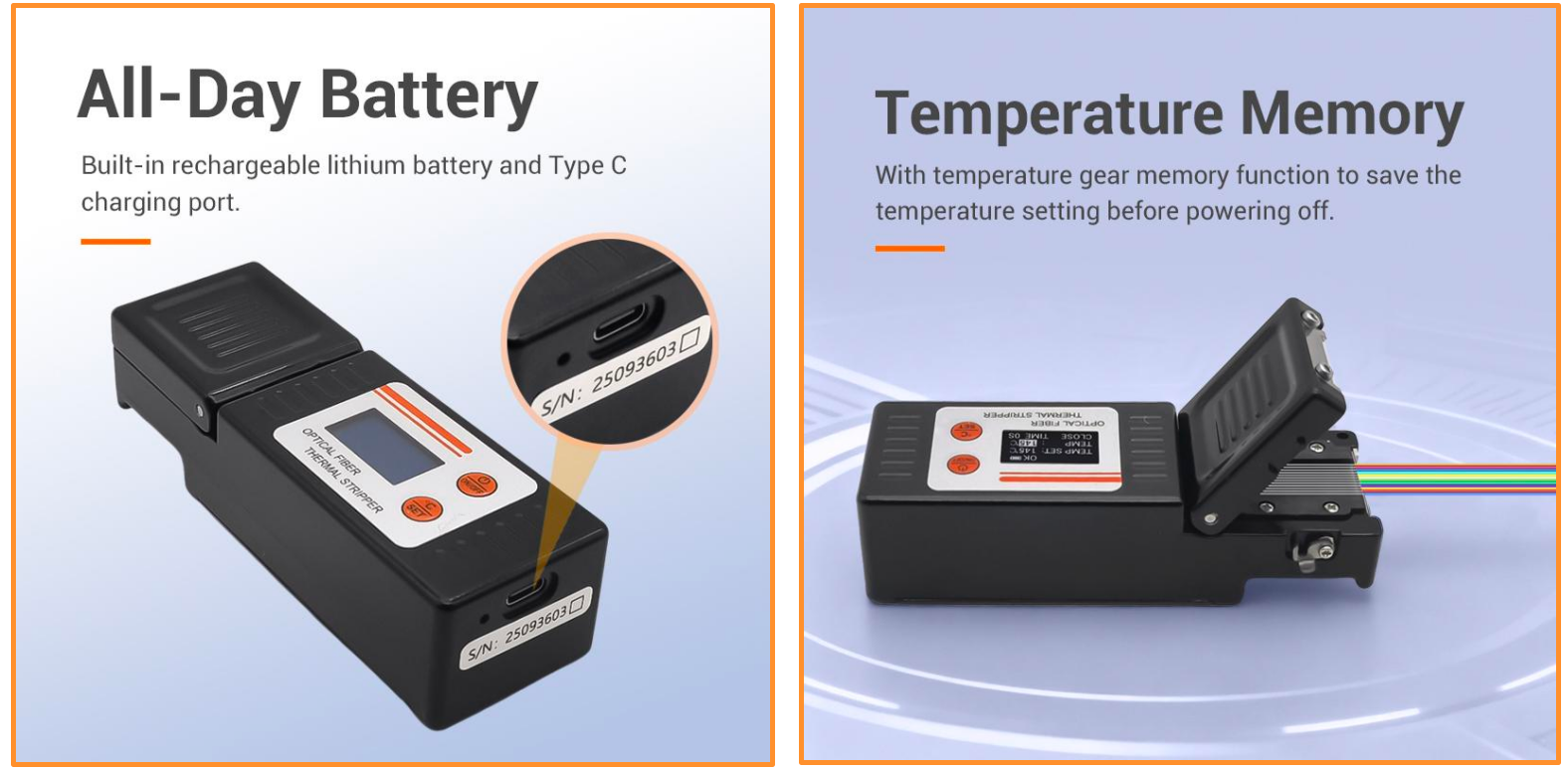

-- Built-in rechargeable lithium battery and Type C charging port.

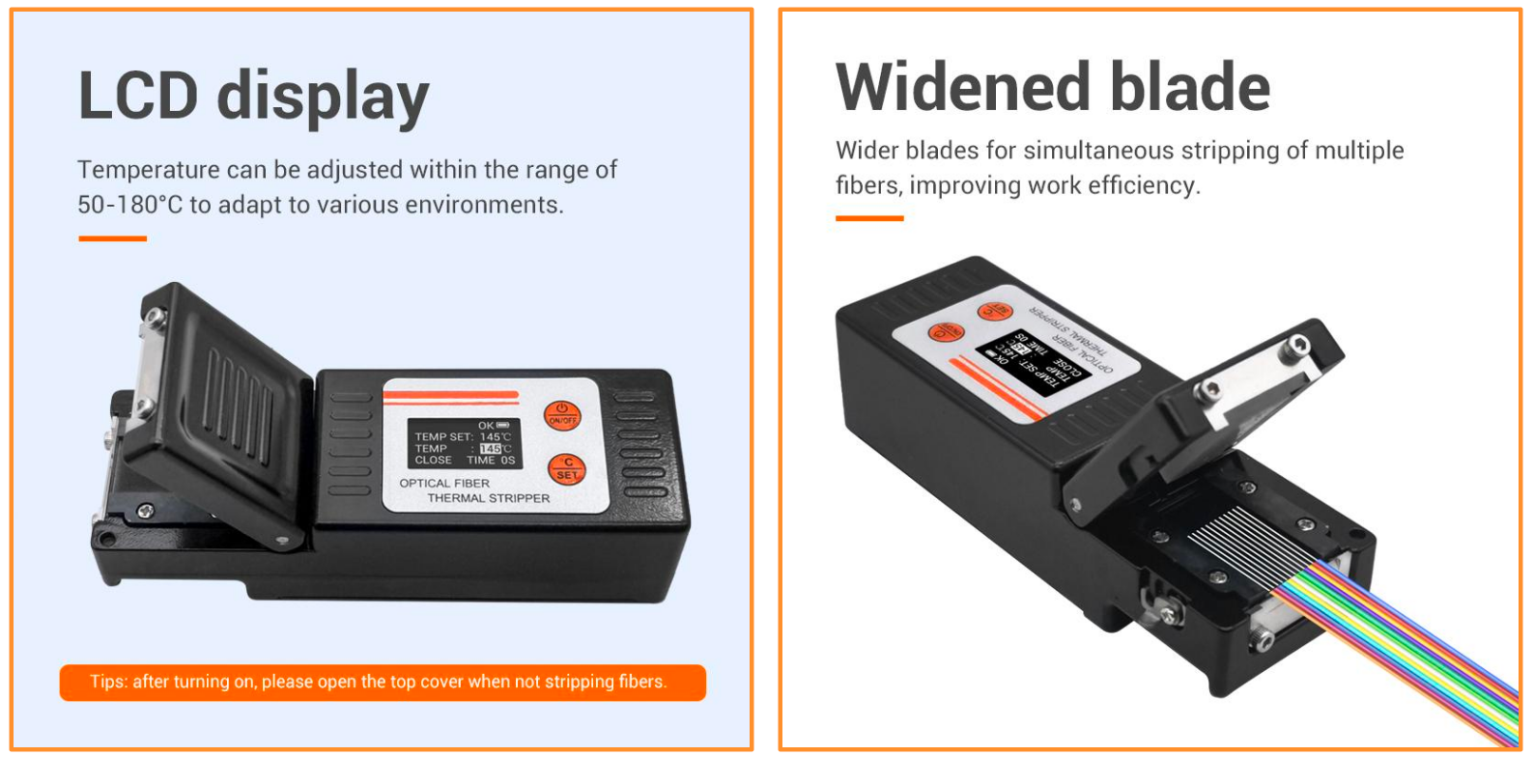

-- LCD display, temperature can be adjusted within the range of 50-180°C to adapt to various environments.
-- With temperature gear memory function to save the temperature setting before powering off.
-- Wider blades for simultaneous stripping of multiple fibers, improving work efficiency.
-- With countdown function and automatic shutdown function.
II. SPECIFICATIONS
Product Name | Fiber Optic Thermal Stripper |
Applicable Optical Fibers | ·Bunched optical fibers ·Bear optical fibers ·Ribbon optical fibers ·Invisible optical fibers |

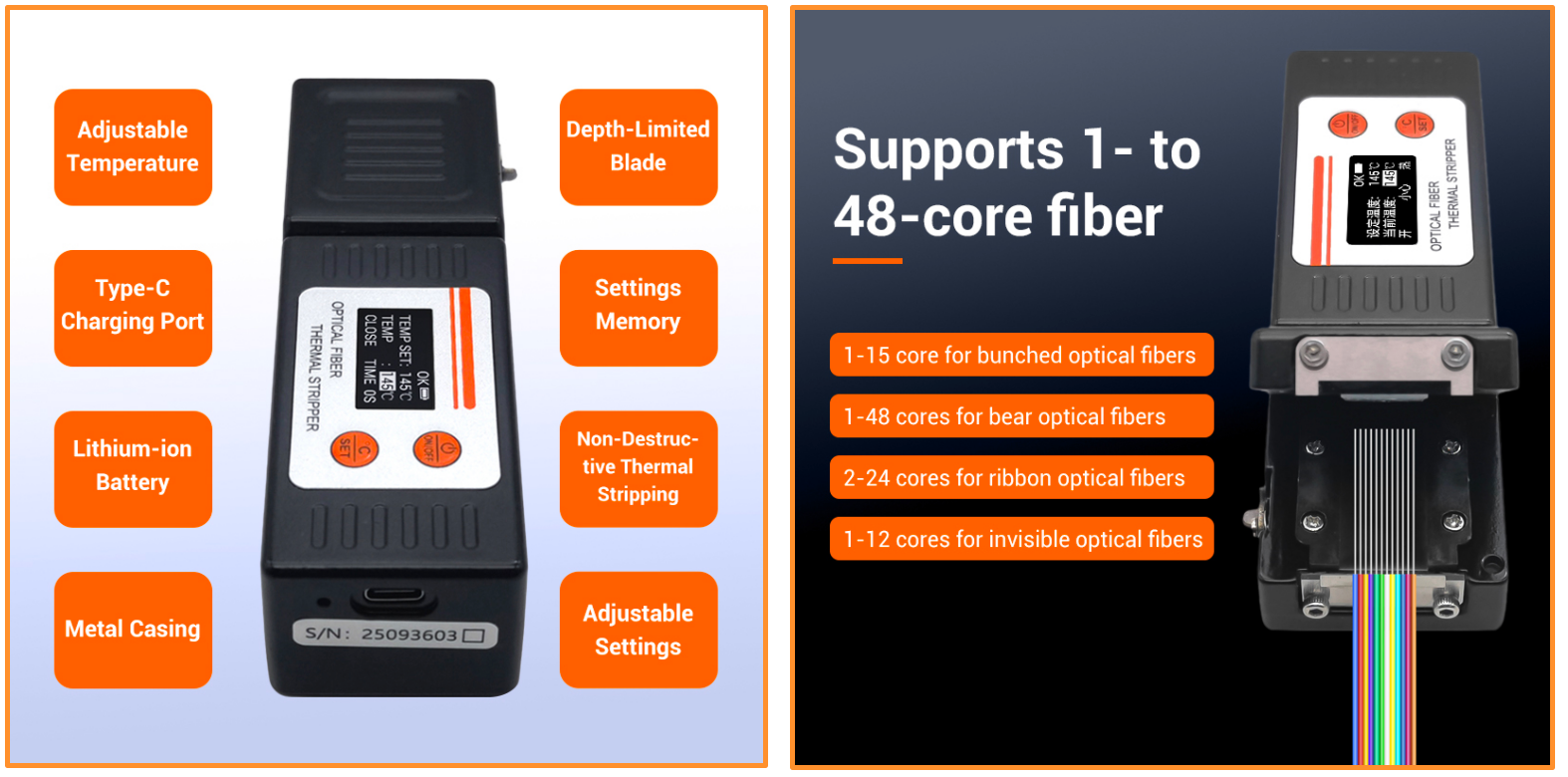

Number of the Stripped Fibers | ·1-15 core for bunched optical fibers ·1-48 cores for bear optical fibers ·2-24 cores for ribbon optical fibers ·1-12 cores for invisible optical fibers |
Applicable Optical Fiber Cladding Diameter | 125μm |
Coating Stripping Length | ≤32mm |
Limiting Blade Edge Width | 20mm |
Temperature | 50℃~180℃ |
Power Supply | Type-C fast charging; built-in battery; 7.4V 3500mAh |
Size | 123(L)*43(W)*32(H)mm |
Weight | about 420g |
Auto Shutdown Time | 6min |
III. DETAILED PICTURES
IV. Kind Reminder

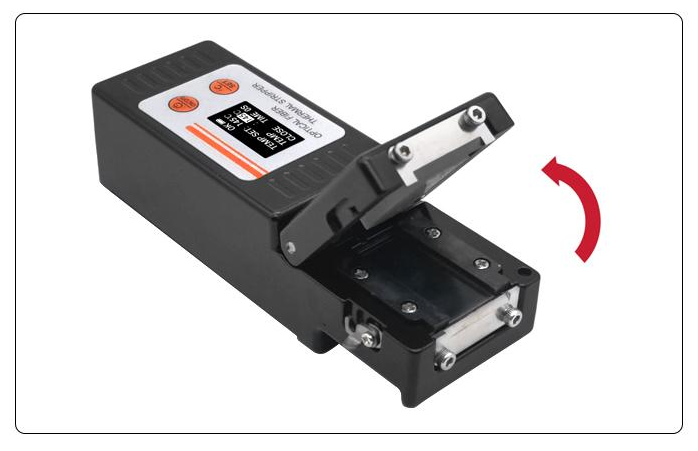

After it is turned on, please open the upper cover. Please also open the upper cover after fiber stripping is completed. When the upper cover is closed, the heating plate will keep heating and the silicone service life will be reduced.
V. PRODUCT LIST

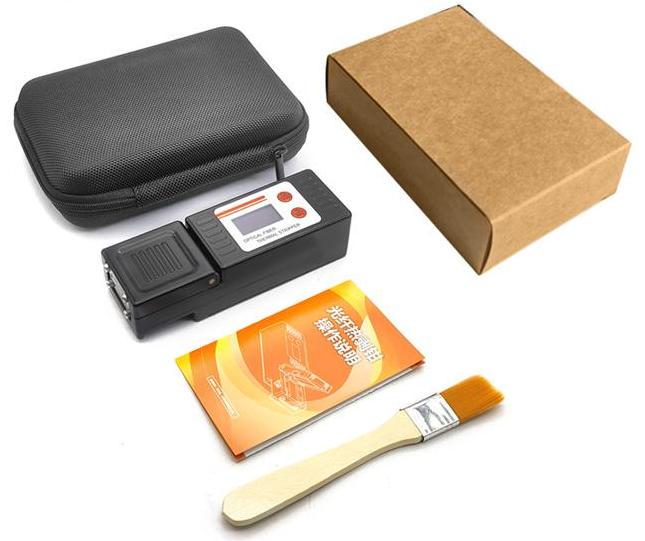

Fiber Optic Thermal Stripper / Package Box / User Manual / Brush
